ZAO

Electrical

MIYAGI (Japan) | may 24 - feb 25

Country:
JAPAN Miyagi)

Final Customer:
Vena Energy Japan

THJ Customer:
Negratin Japan

THJ SOW STATUS: Finished

Duration: 10 months

DC TOTAL CAPACITY (MWp): 161.65
DC THJ SCOPE (MWp): 56

INSTALLATION TYPE: PV Fix-tilt
PROJECT CATEGORY: Electrical installation

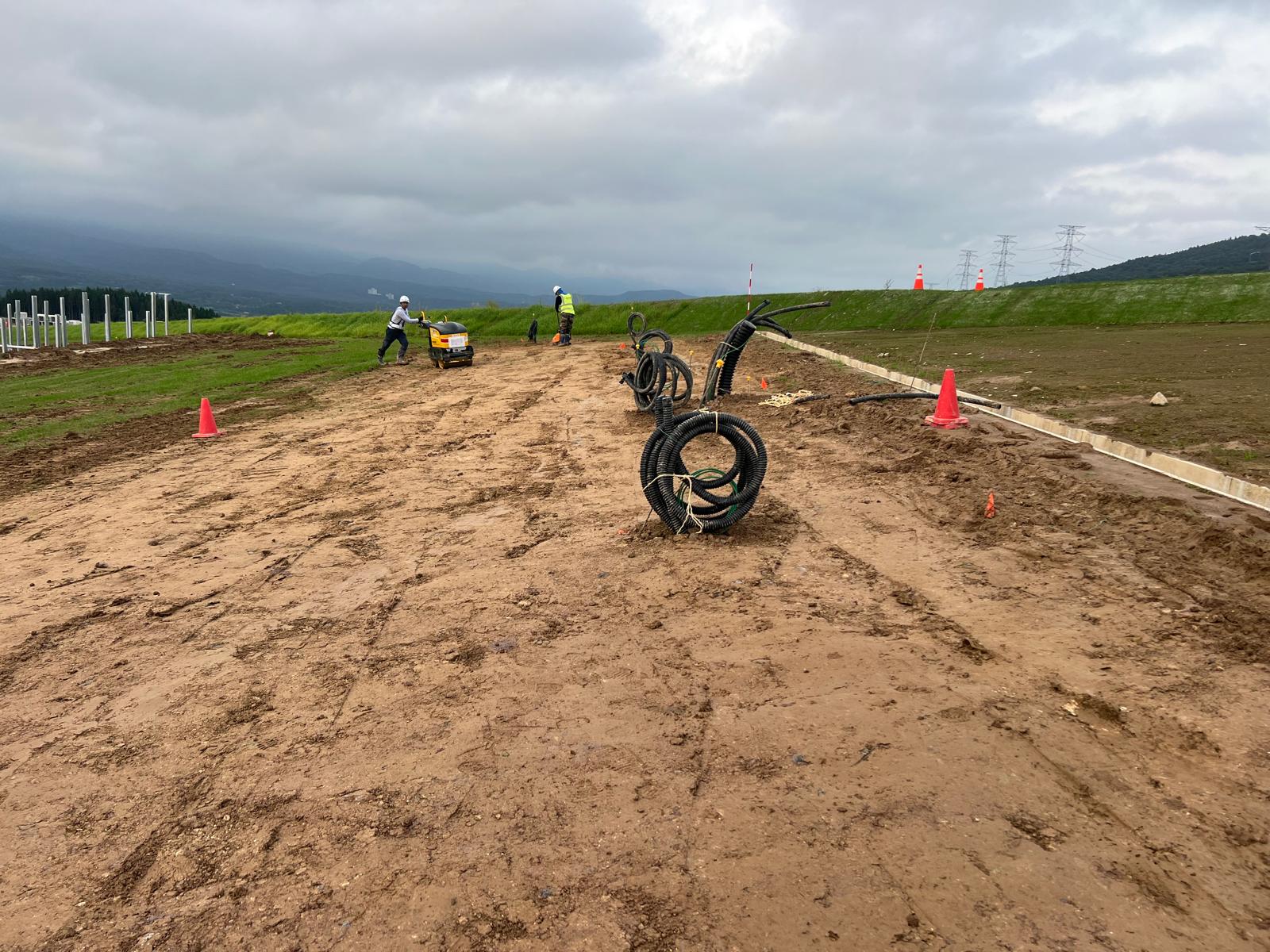

PROJECT HIGHLIGHTS: 56 MW utility-scale PV plant · Full electrical installation · Trenching and cable installation · PCS connection

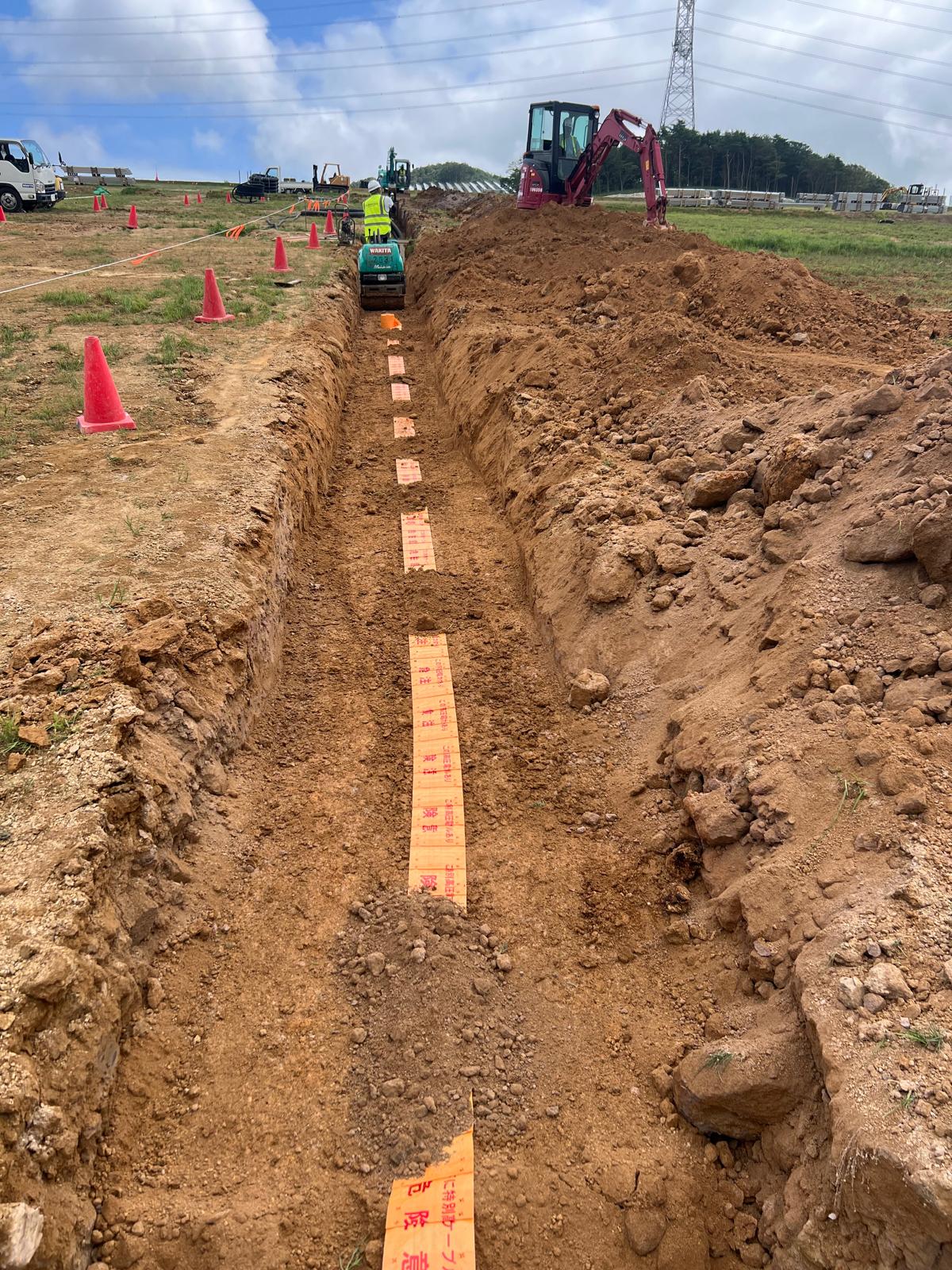

SCOPE SUMMARY: Full electrical installation from module to PCS including trenches

MAIN EQUIPMENT MECH: Structure: S-Rack 2V27 / 2V14 / Tilt 20° | Modules: JINKO JKM415M-72H-V ( 141.344 units )

MAIN EQUIPMENT ELEC: «Inverters / Transformers: Sungrow SG3400HV-MV-30 + SG6800HV-MR | SCB: Promolec 14/16 Strings | Cables: AC (Al 3kV CVT 200 & 325 mm2) / DC (Al 2xCV400 mm2) / solar cable (2x1500V 5.5 mm2)»
